Visible-Light-Induced Synthesis of Vinyl Sulfones from Cinnamic Acids in DMSO

Dimethyl sulfoxide continues to be the solvent of choice for several light-induced reactions. (For other recent examples see Synthesis Corner posts from May 31, 2019, January 2, 2019, and October 1, 2018.) Recently Li and Wang demonstrated the light-induced synthesis of vinyl sulfones starting from various cinnamic acids and sodium arylsulfinates (Table 1).1 This reaction uses Merrifield resin with immobilized Rose Bengal ammonium salt (supported RB) as the catalyst under irradiation by green LEDs. Of note, this Rose-Bengal-modified Merrifield resin is easily made (Scheme 1), and it can be recycled up to six times without losing activity.

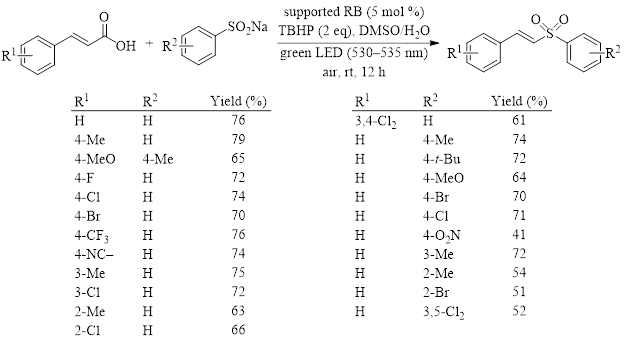

Table 1: Optimized conditions and reaction scope for the light-induced synthesis of vinyl sulfones from cinnamic acids and sodium sulfonates.

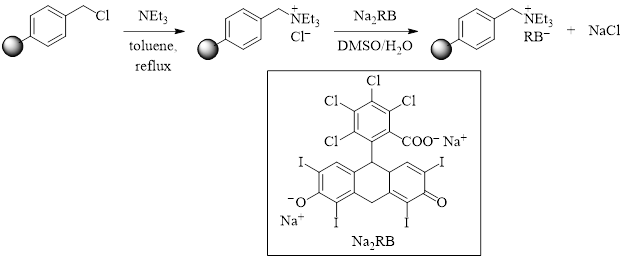

Scheme 1: Synthesis of the Rose Bengal modified Merrifield resin catalyst.



Table 1 shows the yields of several substituted cinnamic acids and sulfinates using the optimized conditions. These results demonstrate that this reaction tolerates both electron-donating and electron-withdrawing groups on both the cinnamic acid and the sodium sulfinate with moderate to good yields in all cases.

Studies showed that the reaction is inhibited in the presence of TEMPO, and EPR spectra indicate that hydroxyl radical is formed and consumed in the reaction. Therefore, the mechanism shown in Scheme 2 was proposed. In this mechanism, light produces the excited-state catalyst which interacts with t-butyl peroxide to form a hydroxyl radical. Through a single electron transfer between the hydroxyl radical and the sulfinate, a sulfonyl radical is formed. This sulfonyl radical regioselectively adds to the cinnamic acid which then undergoes decarboxylation to produce the vinyl sulfone product.

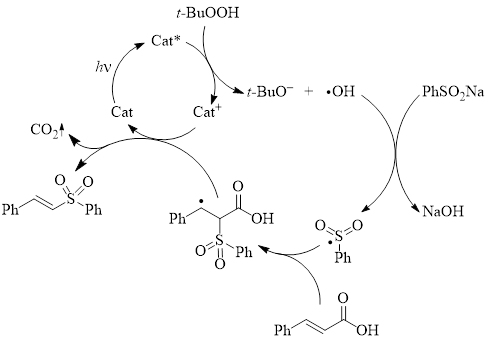

Scheme 2: Proposed mechanism.



In summary, this work demonstrates the visible-light-induced synthesis of a variety of vinyl sulfones using cinnamic acids and sodium arylsulfinates with a Rose-Bengal-modified Merrifield resin catalyst. The reaction tolerates a variety of substitution patterns on both the cinnamic acid and the sulfinate, giving good yields in all cases.

Debra D. Dolliver, Ph.D.


1Li, P.; Wang, G.-W. Org. Biomol. Chem. 201917, 5578.
